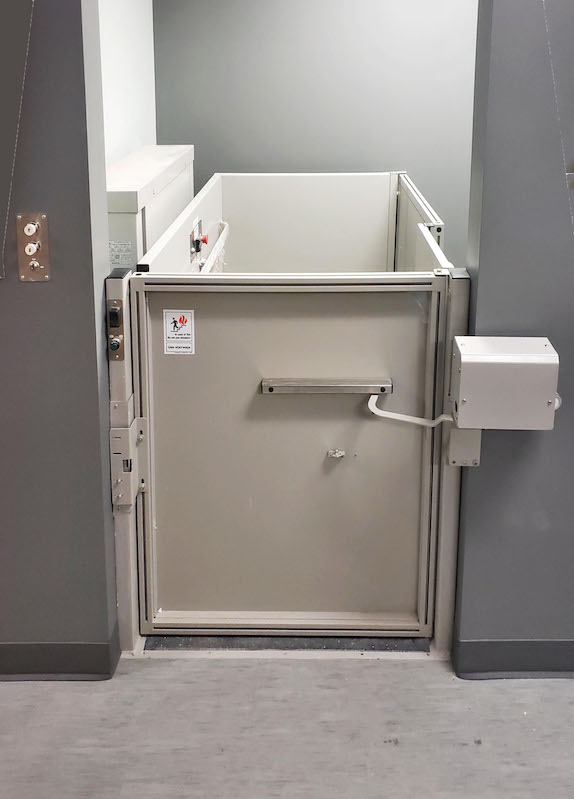

AmeriGlide Hercules 750 Commercial

Model: AMGHERC750DCI

Product Review

(0)

Write a review!

Regular Price: $6,600.00

$6,499.00

Plus Shipping

Warranty

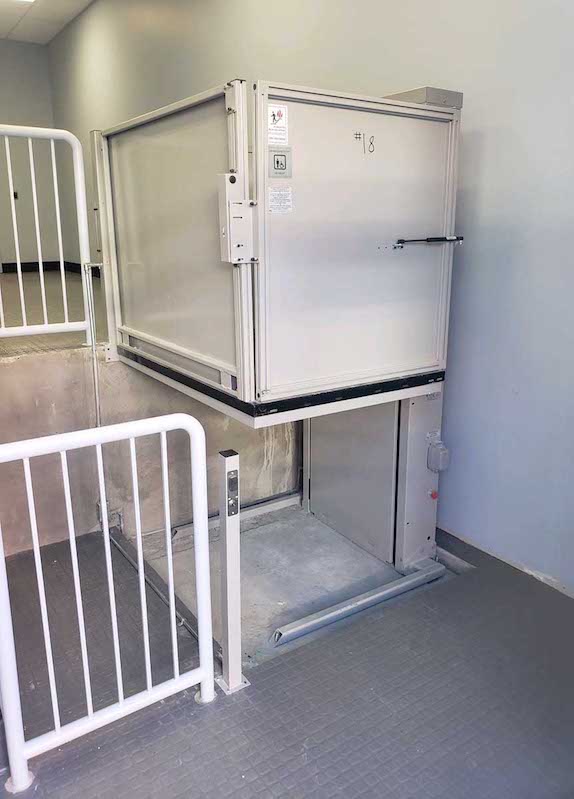

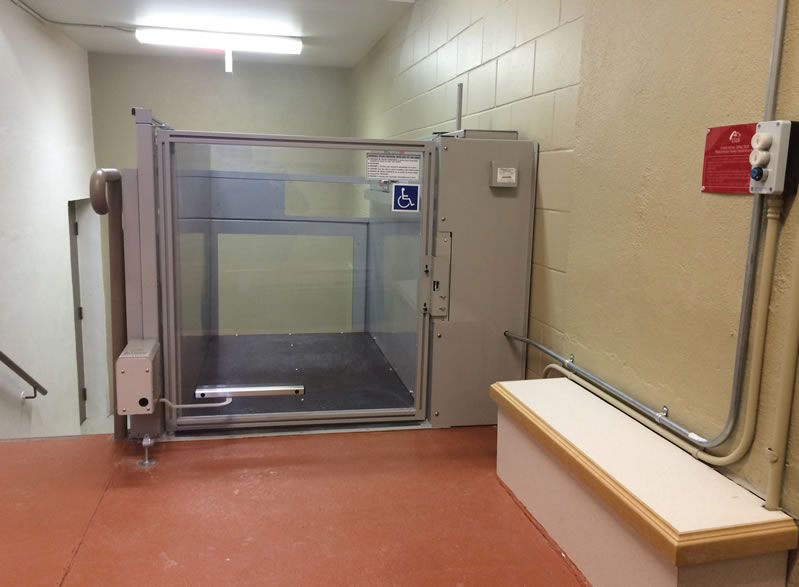

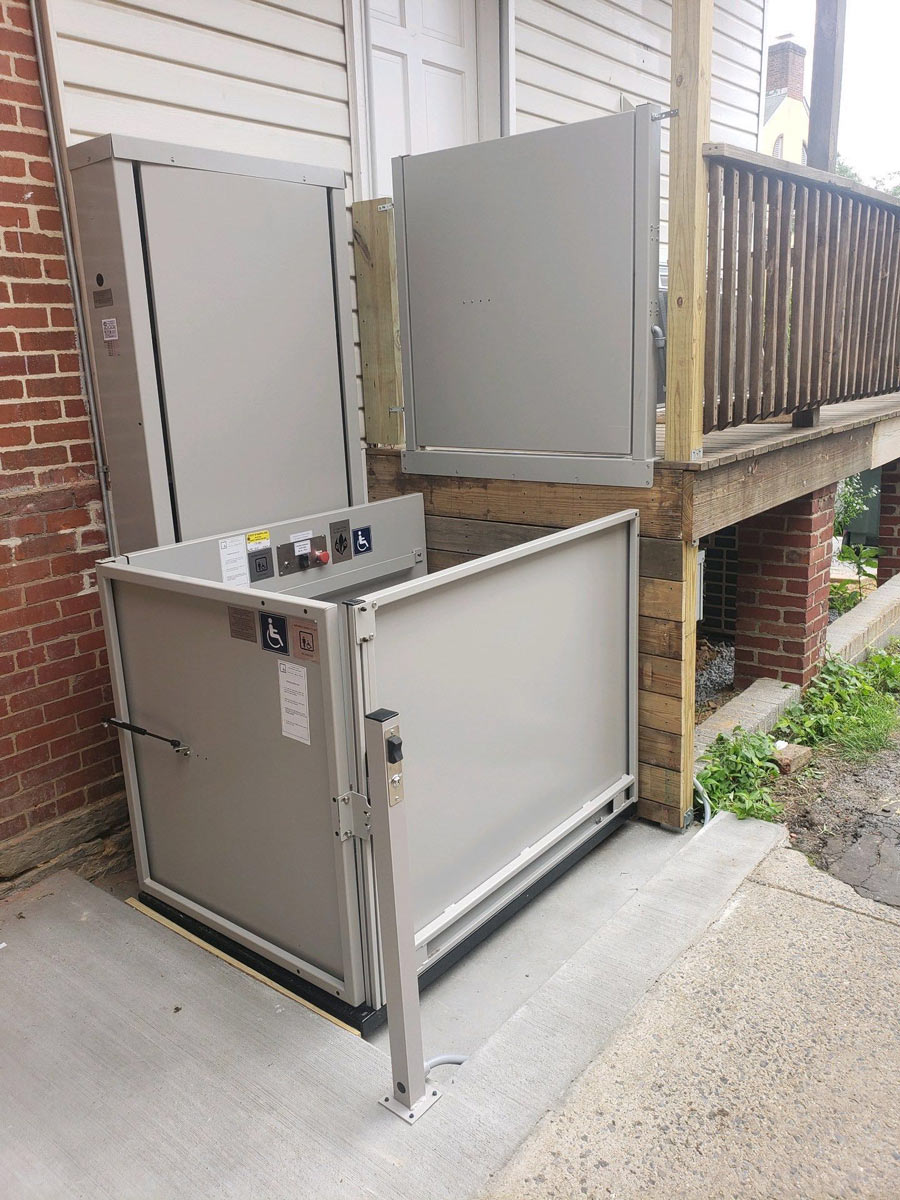

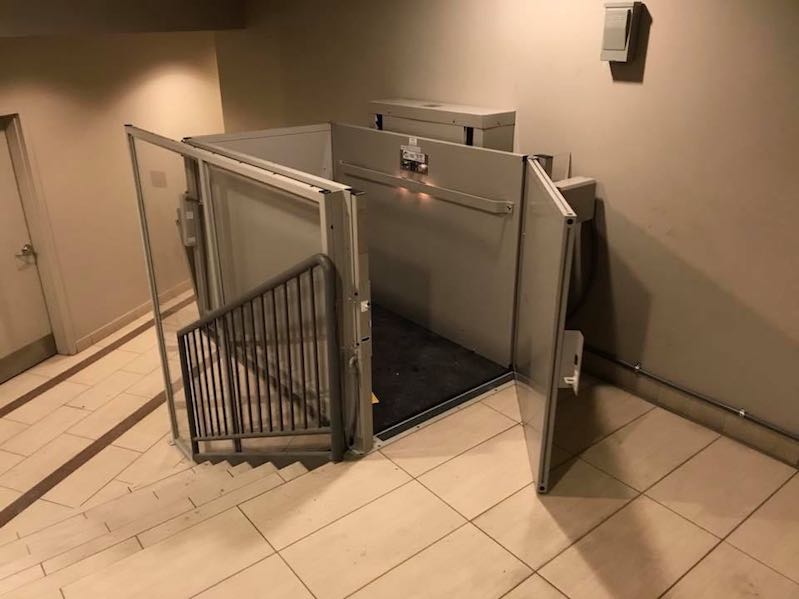

The AmeriGlide Hercules 750 Commercial Vertical Lift is the ideal vertical platform lift for outdoor or indoor commercial applications. Perfect for businesses, municipal buildings, colleges, churches, theaters, and more. The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions.

A 750 pound weight capacity comes standard on the Hercules, but a 1000-pound capacity is available as an option. Great for lifting large wheelchairs and two people at one time.

The acme screw direct drive makes the Hercules the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.

Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.

To learn more about the Hercules 750 Commercial Vertical Lift, call and speak with our experienced VPL experts today.

If you need a fully enclosed Vertical Lift, see our AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift.

Lifting Capacity	750 lb
Standard Lift Height	64"
Maximum Lift Height Upgrade	160"
Arrives Assembled	No
Drive System	Direct Drive ACME Screw
Battery Powered Option	Yes
Constant Pressure Platform Control	Yes
Alarm Button	Included
Platform Type	Non-skid (Epoxy crushed and recycled tires)
Platform Size	W 34"-36" x L 54"-60"
Optional Platform Sizes	Custom: W (31" to 42") x L (46" to 66")
Platform Configuration	Straight-Thru Access
Optional Platform Configurations	Same Side Entry-Exit, 90 Degree Adjacent Access
Grab Rail	Included
Maximum Stops	3
Lift Speed (FPM)	9
Portable	Optional

Commercial DC 750 Includes
- 2252 Keys: +$0.00
- Rocker Switch or NEMA 3R: +$0.00
- Manually Resettable Audible Platform Alarm: +$0.00
- Pit Switch: +$0.00
- Grab Bar: +$0.00
- Platform Lights: +$0.00
- Main Disconnect: +$0.00
- AC Power Cord and Interlock Wiring Kit (for Interlocks Included with Doors, Gates): +$0.00
Power Source
- DC Battery Powered (2 x U1 Batteries Included): +$0.00
- AC Powered: +$0.00
Number of Stops
- Two Stop: +$0.00
- Three Stop: +$1,995.00
Lifting Height
- 44" Maximum Lift Height (72" Tower): +$1,299.00
- 64" Maximum Lift Height (92" Tower): +$0.00
- 78" Maximum Lift Height (108" Tower): +$2,599.00
- 98" Maximum Lift Height (126" Tower): +$3,899.00
- 115" Maximum Lift Height (158" Tower): +$6,599.00
- 130" Maximum Lift Height (158" Tower): +$7,299.00
- 160" Maximum Lift Height (190" Tower): +$7,999.00
Select Tower Bracket Type
- For Tower Heights: 44", 64", 78", 98": +$0.00
- No Bracket Desired (for 44", 64", 78", 98"): +$0.00
- Triangle (for 44", 64", 78", 98"): +$390.91
- Ground Bracket (for 44", 64", 78", 98"): +$390.91
- For Tower Heights 115", 130", 160" (bracket included in unit price): +$0.00
- Triangle Bracket (for 115",130", 160"): +$0.00
- Ground Bracket (for 115",130", 160"): +$0.00
Color of Unit
- Grey (standard): +$0.00
- Custom Color (Call to Verify Color Availability): +$3,500.00
- Stainless Steel: +$8,995.00
Fascia Panels
- No Fascia Panels: +$0.00
- Fascia Panels can be any height up to 98". Specify height in decimal feet below.: +$0.00
- Galvanized Steel Fascia Panels (per foot): +$60.00
- 3/16" Polycarbonate w/Aluminum Frame (per foot): +$67.20

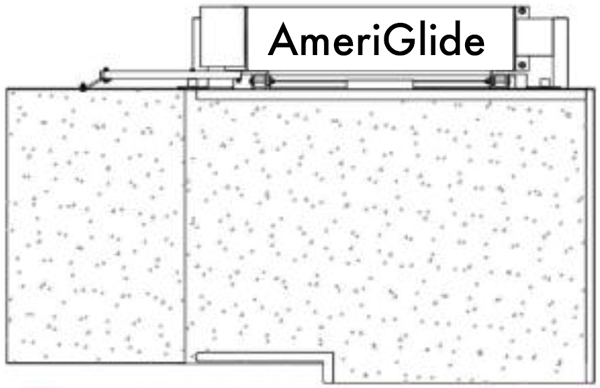

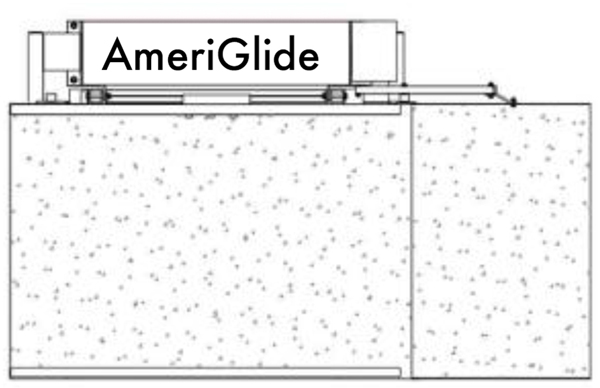

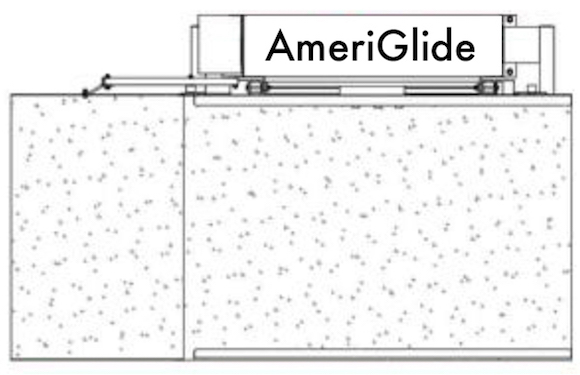

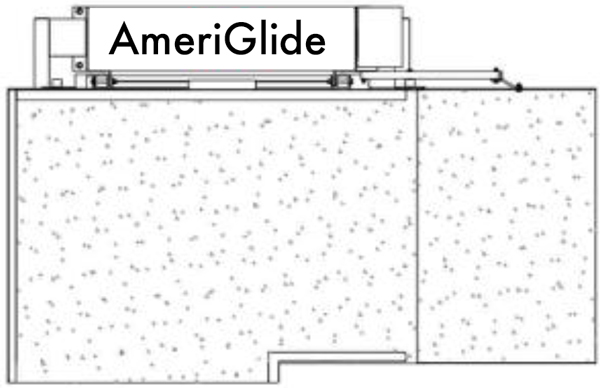

Platform / Tower Configuration
- Straight Thru Left Hand: +$0.00
- 90 Degree Left Hand: +$999.00
- Straight Thru Right Hand: +$0.00
- 90 Degree Right Hand: +$999.00
- Same Side Entry/Exit (For Hoistway Installs Only): +$999.00
Guard Panels / Cab
- 42" High Steel Guard Panels (Standard): +$0.00
- 80" High Full Cab: +$5,040.00
Wing Walls
- No Wing Walls: +$0.00
- 44" Travel: +$450.00
- 64" Travel: +$1,268.40
- 78" Travel: +$1,402.80
- 98" Travel: +$1,537.20
- 115" Travel: +$1,669.92
- 130" Travel: +$1,797.60
- 160" Travel: +$1,932.00
Platform Canopy for 42" Panels (Rather Than Full Cab)
- No Canopy: +$0.00
- Platform Canopy: +$1,450.00
Platform Dimensions (Dimensions are All Clear)
- 34" x 54": +$0.00
- 34" x 60": +$0.00
- 36" x 54": +$0.00
- 36" x 60": +$1,499.00
- Custom: W=30" to 42" by L=46" to 66": +$1,499.00
Platform Controls
- 40mm (1.57") Diameter Buttons on Platform: +$400.00
- 60mm (2.36") Diameter Buttons on Platform: +$400.00
- Joystick: +$209.10
- Additional Platform Controls (On Opposite Side): +$699.00
- Lighted Buttons for COP: +$399.00
Lower Landing (Platform) Orientation
- Note: If Selecting a Platform Gate It Must Be Hinged Same Side as Tower: +$0.00
- Open on Left: +$0.00
- Open on Right: +$0.00
Lower Landing Entrance (Interlock Included with Door/Gate)
- 34" or 36" W x 42" H Platform Gate: +$1,299.00
- 38" to 42" W x 42" H Platform Gate: +$1,799.00
- Door 80" H x 36" W Interior: +$1,350.00
- Door 80" H x 36" W Exterior: +$2,399.00
- Door 80" H x 36" W Fire Rated: +$2,250.00
- Door 80" H x 36" W Exterior Polycarbonate: +$2,399.00
- Door 80" H x 42" W Interior: +$2,295.00
- Door 80" H x 42" W Exterior: +$3,250.00
- Door 80" H x 42" W Fire Rated: +$2,999.00
- Door 80" H x 42" W Exterior Polycarbonate: +$3,250.00
- No Gate or Door (For Doors/Gates Provided by Others): +$0.00
Mid Landing Orientation (3 Stop Units Only)
- Open on Left: +$0.00
- Open on Right: +$0.00
Mid Landing Entrance (3 Stop Units Only - Interlock Included)
- Interlock is Included with any Door Ordered: +$0.00
- Door 80" H x 36" W Interior: +$1,350.00
- Door 80" H x 36" W Exterior: +$2,399.00
- Door 80" H x 36" W Fire Rated: +$2,250.00
- Door 80" H x 36" W Exterior Polycarbonate: +$2,399.00
- Door 80" H x 42" W Interior: +$2,295.00
- Door 80" H x 42" W Exterior: +$3,250.00
- Door 80" H x 42" W Fire Rated: +$2,999.00
- Door 80" H x 42" W Exterior Polycarbonate: +$3,250.00
- No Mid Landing - OR - No Door (For Doors Provided by Others): +$0.00
Upper Landing Orientation
- Open on Left: +$0.00
- Open on Right: +$0.00
Upper Landing Entrance (Interlock Included with Door/Gate)
- 34" or 36" W x 42" H Upper Landing Gate (includes Call/Send in frame): +$1,199.00
- 38" to 42" W x 42 H Upper Landing Gate (includes Call/Send in frame): +$1,695.00
- Door 80" H x 36" W Interior: +$1,350.00
- Door 80" H x 36" W Exterior: +$2,399.00
- Door 80" H x 36" W Fire Rated: +$2,250.00
- Door 80" H x 36" W Exterior Polycarbonate: +$2,399.00
- Door 80" H x 42" W Interior: +$2,295.00
- Door 80" H x 42" W Exterior: +$3,250.00
- Door 80" H x 42" W Fire Rated: +$2,999.00
- Door 80" H x 42" W Exterior Polycarbonate: +$3,250.00
- No Gate or Door (For Doors/Gates Provided by Others): +$0.00
Polycarbonate Gate Option
- If a gate is selected for Platform or Upper Landing, these options allow you to switch to a Polycarbonate panel: +$0.00
- Polycarbonate Panel in Platform Gate (must have selected gate above): +$436.37
- Polycarbonate Panel in Upper Landing Gate (must have selected gate above): +$595.00
Call/Send Options
- 40mm (1.57") Diameter Buttons on Call Station: +$144.00
- 60mm (2.36") Diameter Buttons on Call Station: +$144.00
- Anti-Tamper Commercial Buttons: +$220.00
- Call/Send Control must be ordered for every Door or Gate Ordered: +$0.00
- Keyed Call/Send Post - Lower Landing: +$250.00
- Keyed Call/Send Post - Mid Landing: +$250.00
- Keyed Call/Send Post - Upper Landing: +$250.00
- Keyed Call/Send Flush Mount - Lower Landing: +$250.00
- Keyed Call/Send Flush Mount - Mid Landing: +$250.00
- Keyed Call/Send Flush Mount - Upper Landing: +$250.00
- Keyed Call/Send Surface Mount - Lower Landing: +$250.00
- Keyed Call/Send Surface Mount - Mid Landing: +$250.00
- Keyed Call/Send Surface Mount - Upper Landing: +$250.00
- Lighted Buttons for Call Station: +$285.00
Interlocks (For Gates/Doors Provided by Others)
- Interlock Only (For Gates/Doors Provided by Others): +$399.00
Auto Operators and Closers
- Auto Operator for Gate Qty.: +$1,495.00
- Auto Operator for Door Qty.: +$2,295.00
- Wireless Remotes for Auto Operator (2x): +$240.00
- Gas Spring Loaded Door Closer (Required for Doors Without Auto Opener): +$156.00
Other Options
- Designer Gate: +$400.00
- Easy Access Lowering Mechanism: +$596.37
- Folding Seat: +$599.00
- Fixed Ramp for Bottom Landing: +$599.00
- Custom Sized Folding Ramp (less than 24"): +$399.00
- Additional Weather Protection Coating: +$1,995.00
- Front Panel Brushes (Travel Track Protection): +$399.00
- GFI Outlet in Wing Wall: +$159.82
- Handsfree Phone: +$999.00
- All Wooden Crate: +$199.00
- 1000 lbs. Capacity: +$1,995.00
- Float Switch: +$399.00
Delivery Options
- Pick up at Local Freight Terminal: +$0.00
- Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site: +$0.00
- Site Shipping - Liftgate Delivery (only for 64" models): +$199.00
