The Company warrants to the original purchaser of the Vertical Platform Lift, manufactured by the Company, to be free from defects in material or workmanship during the Warranty Period defined as follows:
2 years for batteries
5 years for all other component parts
Lifetime for circuit board and motor/gear
Labor reimbursement is not covered by this warranty
If defects were the result of improper installation, non-normal use, freight damage, or other terms failing to meet the conditions of this Limited Warranty as described herein, the defects would not be covered.
2 years for batteries
5 years for all other component parts
Lifetime for circuit board and motor/gear
Labor reimbursement is not covered by this warranty
If defects were the result of improper installation, non-normal use, freight damage, or other terms failing to meet the conditions of this Limited Warranty as described herein, the defects would not be covered.
The battery operated Crest Vertical Platform Lift provides faster travel and a smoother ride than most lifts. Its quieter operation is provided by the elevator cable drum drive which allows a lifting capacity of 750 lbs. Safe and reliable operation is assured by the 3/8" aircraft cable drive and a diagnostic indicator. The lift is AWS Certified, meets A18.1 Section 2 and 5 and is made in America.

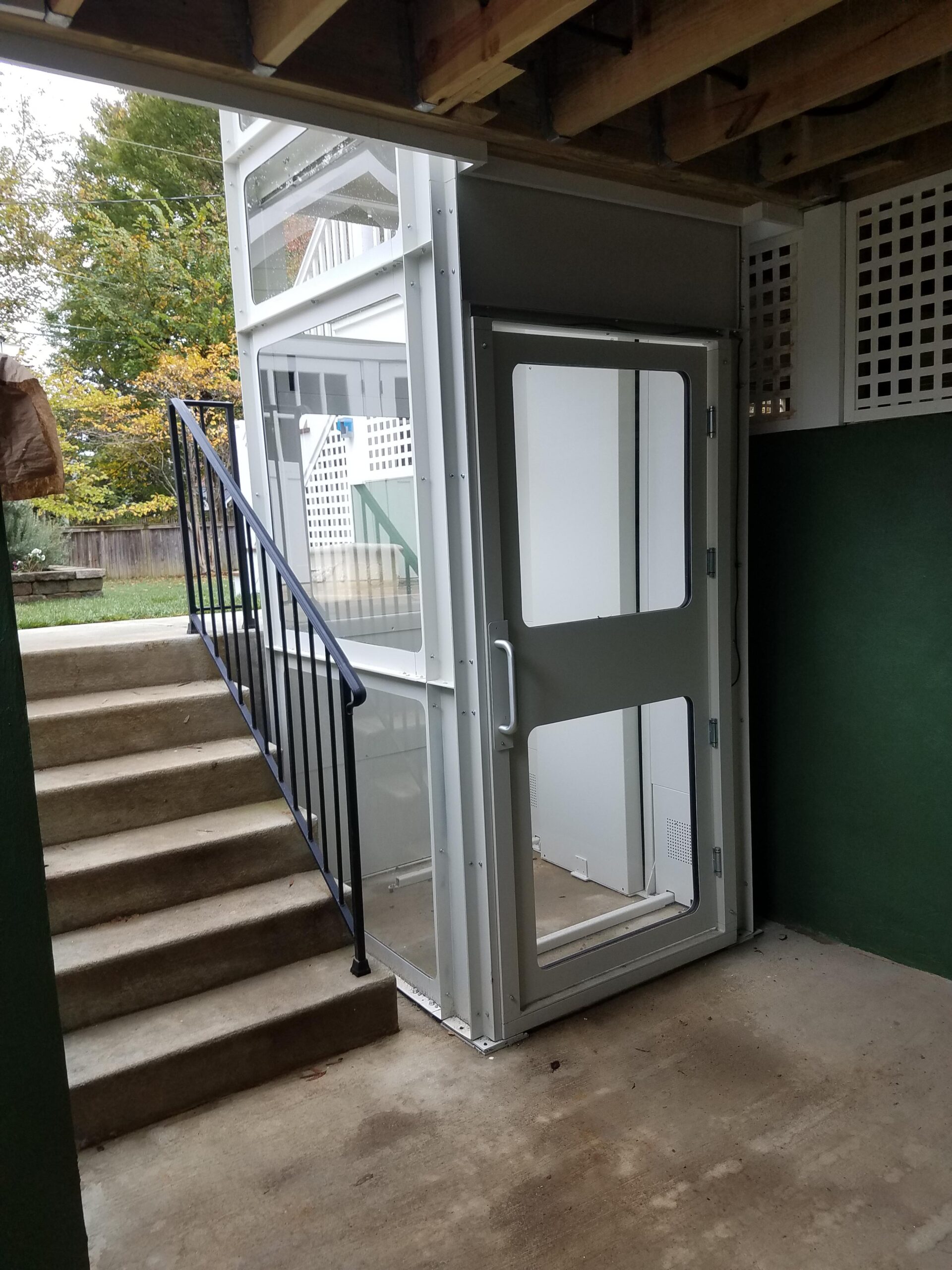

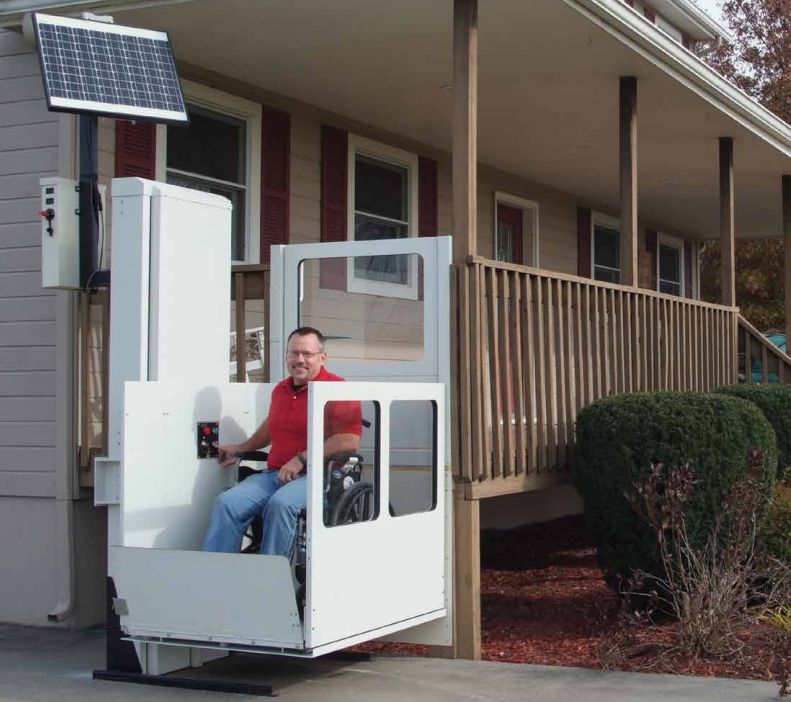

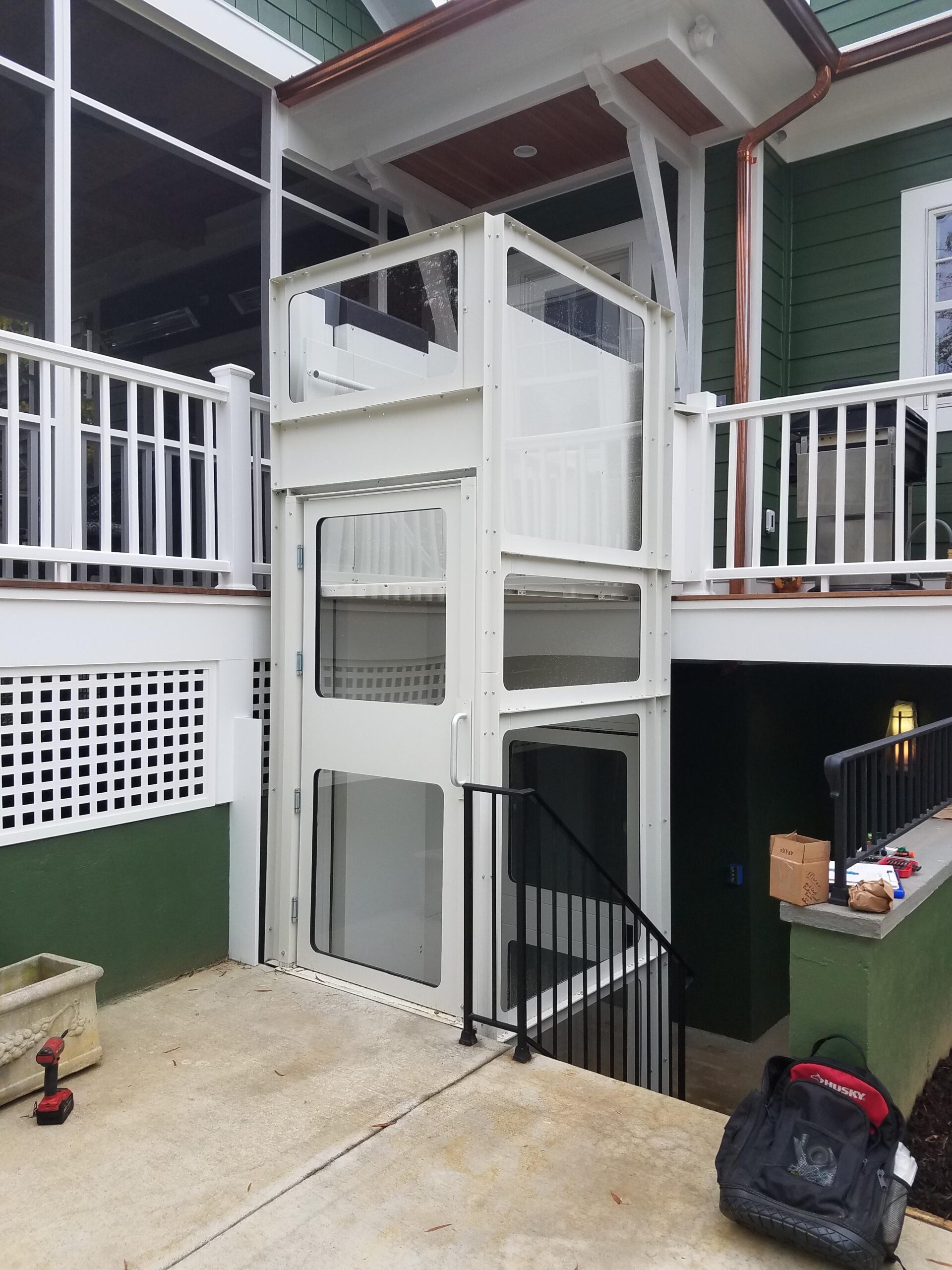

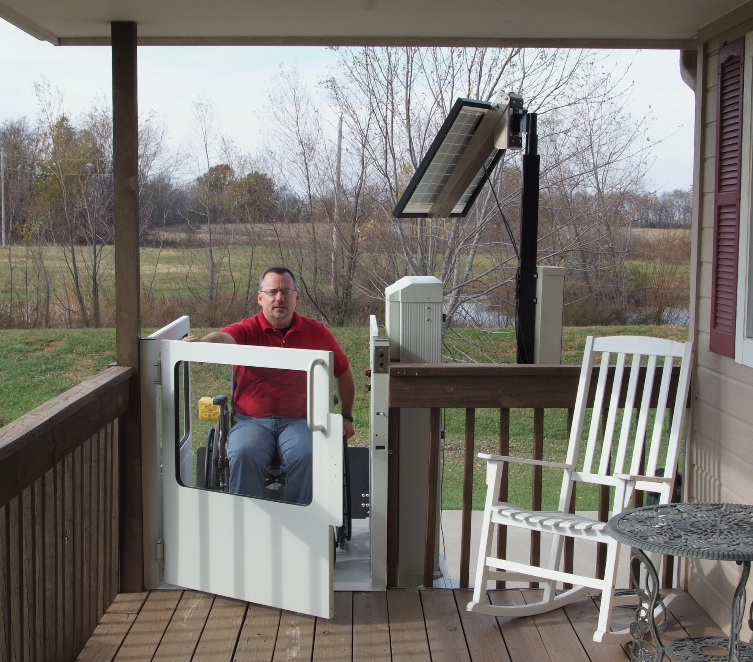

Built from durable aluminum, it is corrosion resistant and lighter than most similar lifts. For locations not near electric mains, a solar charger for the battery is available as an option. A full enclosure is also available to keep the rider out of the elements.
Contact our Vertical Platform Lift experts to determine which configuration will best suit your needs.
Call for Shipping Cost.
NOTE: Delivery only to a freight terminal or commercial site with a dock and forklift on site.
Built from durable aluminum, it is corrosion resistant and lighter than most similar lifts. For locations not near electric mains, a solar charger for the battery is available as an option. A full enclosure is also available to keep the rider out of the elements.
Contact our Vertical Platform Lift experts to determine which configuration will best suit your needs.
Call for Shipping Cost.
NOTE: Delivery only to a freight terminal or commercial site with a dock and forklift on site.
| Lifting Capacity | 750 lb |
| Standard Lift Height | 168" |
| Arrives Assembled | Yes |
| Drive System | Dual Winding Cable Drums with 3/8" Cables |
| Battery Powered Option | No |
| Constant Pressure Platform Control | Yes |
| Emergency Stop Platform Control | Yes |
| Alarm Button | Yes |
| Call-Send Controls | RF Call/Send Station (1 per landing provided) |
| Optional Call-Send Controls | Yes |
| Platform Type | Non-Skid |
| Platform Size | 36" x 48" |
| Optional Platform Sizes | 36"x54", 36"x60", 42"x54", 42"x60", Custom |
| Platform Configuration | Single Entry/Exit |
| Optional Platform Configurations | Pass Through, 90 Degree |
| Guard Panel | 42" |
| Maximum Stops | 3 |
| Lift Speed (FPM) | 15 |
| Portable | No |
| Other Options | Enclosure, Solar Battery Charger, Bluetooth Controller |
Application
- Residential: +$0.00
- Commercial (if lift height over 60" must be in a hoistway or enclosure): +$0.00
- Residential: +$0.00
Location
- Indoor: +$0.00
- Outdoor: +$0.00
- Indoor: +$0.00
Installation Information
- Pit Mount: +$0.00
- If Pit Mount - Pit Depth (3" min recommended): +$0.00
- Floor Mount (requires ramp below): +$0.00
- Hoistway (or Enclosure) Installation: +$0.00
- Bottom Mounting Surface to Top Landing: +$0.00
- Bottom Mounting Surface to Mid Landing (if 3 stop): +$0.00
- Pit Mount: +$0.00
Lifting Height
- 48" Maximum Lift Height: +$0.00
- 72" Maximum Lift Height: +$1,429.00
- A Platform Gate is Required for over 72": +$0.00
- 96" Maximum Lift Height: +$2,857.00
- 120" Maximum Lift Height: +$4,429.00
- 144" Maximum Lift Height: +$5,857.00
- 168" Maximum Lift Height: +$7,429.00
- 48" Maximum Lift Height: +$0.00
Number of Stops
- 2 Stops: +$0.00
- 3 Stops: +$1,429.00
- 2 Stops: +$0.00
Tower Support
- Standard Mount to Structural Wall: +$0.00
- Tower Support (per foot of lifting height): +$143.00
- Standard Mount to Structural Wall: +$0.00
Platform Configuration
- Straight Through: +$0.00
- Enter/Exit on Left: +$858.00
- Enter/Exit on Right: +$858.00
- 90 Degree - Exit Left (42"x54" or 42"x60" Platforms Only): +$1,286.00
- 90 Degree - Exit Right (42"x54" or 42"x60" Platforms Only): +$1,286.00
- Straight Through: +$0.00
Platform Size
- 36" x 48" - Platform: +$0.00
- 36" x 54" - Platform: +$858.00
- 36" x 60" - Platform: +$1,143.00
- 42" x 54" - Platform: +$1,429.00
- 42" x 60" - Platform: +$1,715.00
- Custom Size Platform - Call for Size Options and Price: +$0.00
- 36" x 48" - Platform: +$0.00
Gates (Honeywell Residential Interlocks Included)
- Top Landing Gate with Clear Vision Panel: +$0.00
- 36" Top Landing Gate: +$1,422.00
- 42" Top Landing Gate: +$1,993.00
- Left Hand Swing Top Landing Gate: +$0.00
- Right Hand Swing Top Landing Gate: +$0.00
- Platform Gate: +$0.00
- 36" Platform Gate: +$1,422.00
- 42" Platform Gate: +$1,993.00
- Left Hand Swing Platform Gate: +$0.00
- Right Hand Swing Platform Gate: +$0.00
- Top Landing Gate with Clear Vision Panel: +$0.00
Door Openings per Floor
- 1st Floor - Left: +$0.00
- 1st Floor - Front: +$0.00
- 1st Floor - Right: +$0.00
- 2nd Floor - Left: +$0.00
- 2nd Floor - Front: +$0.00
- 2nd Floor - Right: +$0.00
- 3rd Floor (if 3 Stop) - Left: +$0.00
- 3rd Floor (if 3 Stop) - Front: +$0.00
- 3rd Floor (if 3 Stop) - Right: +$0.00
- 1st Floor - Left: +$0.00
Doors for Hoistway by Others
- 36" Enclosure Style Door - Left Hand Swing: +$2,108.00
- 36" Enclosure Style Door - Right Hand Swing: +$2,108.00
- Flush Mount Door Frame (36"x80"): +$1,358.00
- 36" Steel Fire Door - Left Hand Swing: +$5,429.00
- 36" Steel Fire Door - Right Hand Swing: +$5,429.00
- 42" Steel Fire Door - Left Hand Swing: +$6,143.00
- 42" Steel Fire Door - Right Hand Swing: +$6,143.00
- Upgrade Interlocks to Commercial Grade: +$429.00
- Honeywell Interlock for Doors by Others: +$572.00
- Honeywell Commercial Interlock for Doors by Others: +$858.00
- Wiring for Interlocks Provided by Others (each): +$143.00
- Automatic Door Operator: +$2,786.00
- 36" Enclosure Style Door - Left Hand Swing: +$2,108.00
Other Options
- Stationary Ramp: +$279.00
- Auto Folding Ramp: +$422.00
- Key Switch on Call/Send Station: +$72.00
- Aluminum Fascia Panel (per foot): +$143.00
- Clear Acrylic Insert in Front Guard Panel: +$643.00
- Platform Lighting: +$429.00
- Pit Switch: +$143.00
- Telephone Jack: +$129.00
- ADA Telephone: +$1,422.00
- Wiring Only for Wall Mounted Lockable Disconnect (disconnect by others): +$358.00
- Solar Powered Battery Charger: +$1,715.00
- Upgrade Controller to Bluetooth Enabled: +$115.00
- Over-The-Step Bridge (length in feet) (36" wide aluminum, 6' high max): +$715.00
- State Code Compliance Package (includes Z97.1 labels, rope tags, and wiring for disconnect by others): +$572.00
- Stationary Ramp: +$279.00
Custom Colors (powder coating requires additional lead time)
- RAL Color Choice for lift and/or enclosure (if selected below): +$0.00
- 48" and 72" Lifting Heights: +$2,715.00
- 96" and 120" Lifting Heights: +$3,143.00
- 144" and 168" Lifting Heights: +$3,858.00
- Top Landing Gate: +$822.00
- Enclosure Style Door (not ordered with an Enclosure below): +$822.00
- RAL Color Choice for lift and/or enclosure (if selected below): +$0.00
Enclosures
- Aluminum/clear enclosure includes 6'8" door at bottom and 42" gate at top with interlocks: +$0.00
- No Enclosure Required: +$0.00
- 48" Lifting Height (90" tower): +$5,642.86
- 72" Lifting Height (114" tower): +$6,786.00
- 96" Lifting Height (138" tower): +$7,858.00
- 120" Lifting Height (162" tower): +$9,143.00
- 144" Lifting Height (186" tower): +$10,429.00
- 168" Lifting Height (210" tower): +$11,715.00
- Aluminum/clear enclosure includes 6'8" door at bottom and 42" gate at top with interlocks: +$0.00
Enclosure Options
- Upgrade Top to a 6'8" Door (adds 48" to overall height): +$2,429.00
- 3 Stop Package (includes middle door): +$2,715.00
- 90 Degree Configuration: +$2,429.00
- Aluminum Roof: +$1,215.00
- Ventilation Package (battery powered fan and thermostat): +$1,422.00
- Upgrade Top to a 6'8" Door (adds 48" to overall height): +$2,429.00
Other Shipping and Delivery
- 48"-72" Enclosure Ordered - Additional Freight Charge: +$750.00
- 96"-120" Enclosure Ordered - Additional Freight Charge: +$850.00
- 144"-168" Enclosure Ordered - Additional Freight Charge: +$1,000.00
- Delivery only to Terminal or Commercial Site with Dock and Forklift at Site: +$0.00
- 48"-72" Enclosure Ordered - Additional Freight Charge: +$750.00
Delivery State - Call for Shipping Price
- Alabama: +$0.00
- Alaska: +$0.00
- Arizona: +$0.00
- Arkansas: +$0.00
- California: +$0.00
- Colorado: +$0.00
- Connecticut: +$0.00
- Delaware: +$0.00
- District of Columbia: +$0.00
- Florida: +$0.00
- Georgia: +$0.00
- Hawaii: +$0.00
- Idaho: +$0.00
- Illinois: +$0.00
- Indiana: +$0.00
- Iowa: +$0.00
- Kansas: +$0.00
- Kentucky: +$0.00
- Louisiana: +$0.00
- Maine: +$0.00
- Maryland: +$0.00
- Massachusetts: +$0.00
- Michigan: +$0.00
- Minnesota: +$0.00
- Mississippi: +$0.00
- Missouri: +$0.00
- Montana: +$0.00
- Nebraska: +$0.00
- Nevada: +$0.00
- New Hampshire: +$0.00
- New Jersey: +$0.00
- New Mexico: +$0.00
- New York: +$0.00
- North Carolina: +$0.00
- New Dakota: +$0.00
- Ohio: +$0.00
- Oklahoma: +$0.00
- Oregon: +$0.00
- Pennsylvania: +$0.00
- South Carolina: +$0.00
- Rhode Island: +$0.00
- South Dakota: +$0.00
- Tennessee: +$0.00
- Texas: +$0.00
- Utah: +$0.00
- Vermont: +$0.00
- Virginia: +$0.00
- Washington: +$0.00
- West Virginia: +$0.00
- Wisconsin: +$0.00
- Wyoming: +$0.00
- Alabama: +$0.00
