click picture to enlarge
Regular Price: $5,495.00
$4,085.00
Plus Shipping

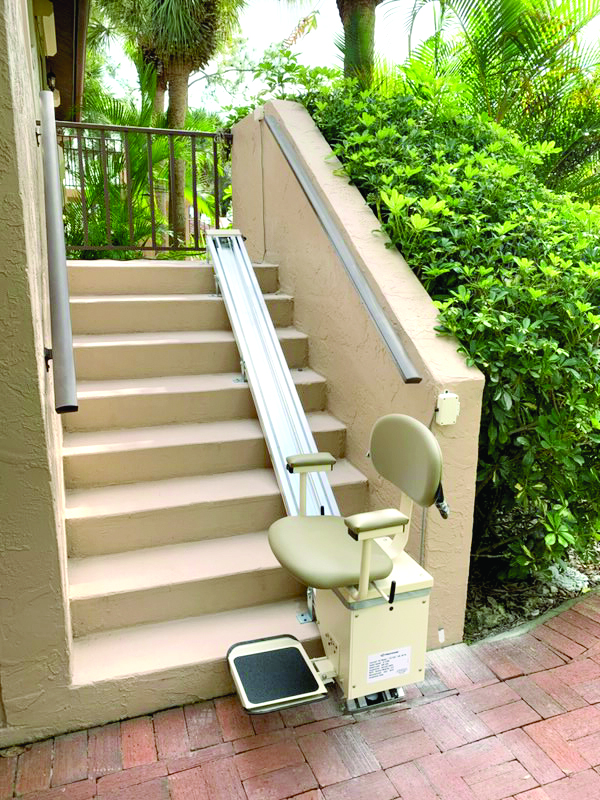

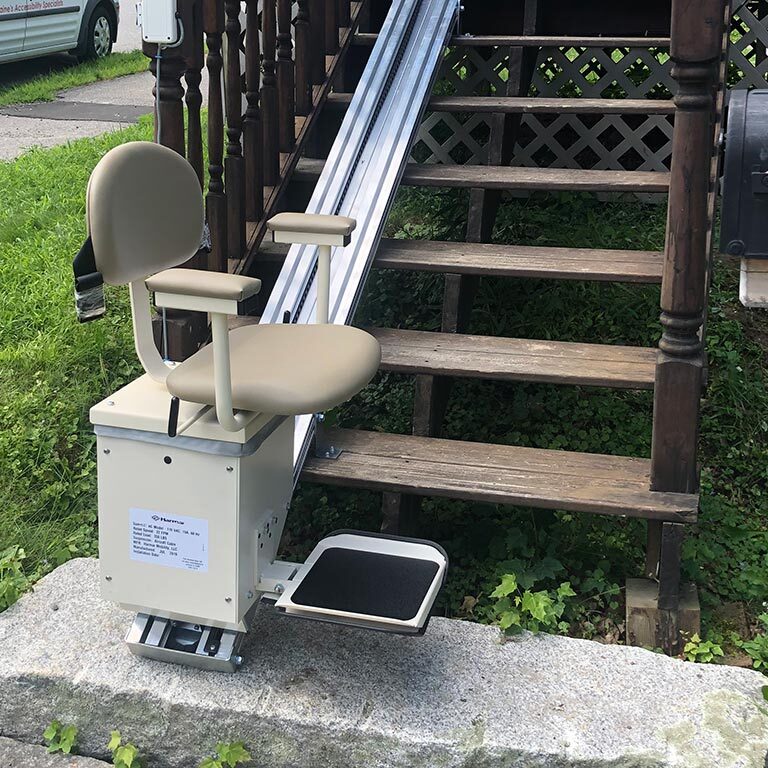

The Summit Outdoor Stair Lift is engineered with a durable extruded aluminum
track and marine-grade vinyl seating to handle rain, wind, snow, and temperatures

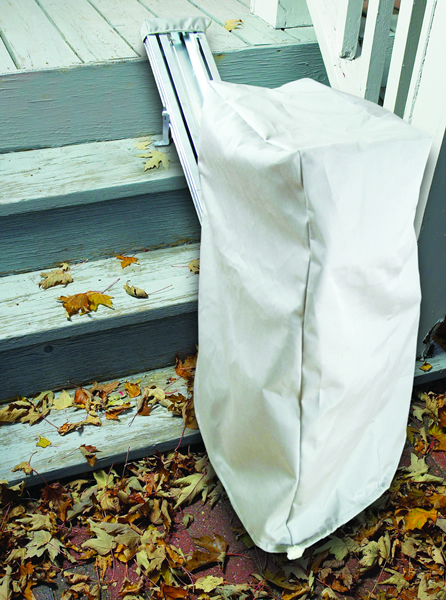

from 0 degrees to 125 degrees. Includes header, internal chassis, and large weatherproof cover for
protection of outside elements.
Features:
Features:
- Header cover, internal chassis cover and a large weatherproof cover included
- Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
- Mounts to the stairs (not the wall) on either side of staircase
- Operates on standard 115V AC household current
- Extruded aluminum track is available in custom lengths
- Seat and footrest fold to save space
- Seat cushions in exterior marine grade vinyl
- Separate controls at top and bottom of stairs
| Drive Type | Cable |
| Battery Powered | No |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 15.5' |
| Max Track Length, Optional | 25' |
| Track Material | Aluminum |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | No |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Seat Width | 17.5" |
| Seat Depth | 14" |
| Unit Footprint, In Use | 24.5" |
| Unit Footprint, Folded | 14" |
| Track Footprint | 12" |
| Call Stations Included | Wired |
| Track Width | 8" |
| Rail Angle, Min | 30° |
| Rail Angle, Max | 45° |
| Digital Diagnostics Display | No |
| Key Lock | No |
Vinyl Seat Color
- Light Almond: +$0.00
- Light Almond: +$0.00
Seat Size
- 17.5" W: +$0.00
- 17.5" W: +$0.00
Options
- Keylock Package - Keyed Base & Keyed Call-Send Controls: +$443.00
- Keyed Base Only: +$236.00
- Grocery Basket: +$293.00
- Wireless Call/Send Controls For Outdoors: +$565.00
- Keylock Package - Keyed Base & Keyed Call-Send Controls: +$443.00
Track Length (15' is Standard *)
- * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.: +$0.00
- 15' of track * (180"): +$0.00
- Custom Cut track Less Than 15': +$150.00
- Track length 16' and over reduces weight capacity to 250 pounds: +$0.00
- Custom Cut 16' to 18' of track (180" to 216") 250 lb Capacity: +$350.00
- Custom Cut 18' to 25' of track (216" to 300") 250 lb Capacity: +$565.00
- 20' of track Uncut 250 lb Capacity: +$250.00
- 25' of track Uncut 250 lb Capacity: +$565.00
- * Actual track is 6" longer. A 6" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.: +$0.00
Orientation (looking UP the staircase)
- The stair lift will be on the left: +$0.00
- The stair lift will be on the right: +$0.00
- The stair lift will be on the left: +$0.00
Installation
- NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there.: +$0.00
- Self Installation: +$0.00
- Nationwide Installation (Not available in Oregon or Washington): +$599.00
- Nationwide Installation and Measurement Service (Not available in Oregon or Washington): +$749.00
- Double Stair Lift Installation Service - Per Stair Lift (Not available in Oregon or Washington): +$437.50
- Stair Lift Removal and Disposal (Not available in Oregon or Washington): +$499.00
- NOTE: We do not perform installations in Oregon or Washington. Please choose Self-Installation at checkout if you live there.: +$0.00
Installation Permit
- License / Permit / Inspection: +$425.00
- Permit and Inspection: +$350.00
- Permit (Required in Kentucky for EACH item being installed): +$87.50
- Permit & Inspection (Required in Georgia for EACH item being installed): +$250.00
- Permit & Inspection (Required in Alabama. Additional units incur additional fee.): +$300.00
- License / Permit / Inspection: +$425.00
Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
- Installation In Remote or Limited Access Location: +$345.00
- Installation On Concrete, Steel, or Tile Stairs: +$300.00
Measurements
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.: +$0.00
- 1. Overall length: +$0.00
- 2. Top stair to bottom stair: +$0.00
- 3. Staircase width: +$0.00
- 4. Bottom clearance: +$0.00
- 5. Rise of one step: +$0.00
- 6. Tread of one step: +$0.00
- 7. Diagonal: +$0.00
- 8. Door at the top: +$0.00
- Need help measuring? Print out the "How to Measure" worksheet.: +$0.00
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.: +$0.00
